HuckLok
Wide Grip-Range and Double-Locking Action for a Secure Hold
Featuring a wide grip range and unique double-locking action, the HuckLok® blind rivet combines high shear strength and high pull-up force. Its double-locking action consistently secures the assembly from both sides, resulting in maximum hold and joint integrity. Its large, blind-side footprint prevents pull-through, especially when joining thin or lightweight materials, such as plastics, composites, or any kind of pliable material. Positive mechanical pin retention ensures structural integrity, while annular grooves keep pressure on the back side.
- Unique bulbing system for superior blind side strength
- Wide grip-range and unique double-locking action
- Positive mechanical bolt retention ensures structural integrity
- Large, blind-side footprint prevents pull-through
- Annular grooves keep pressure on the back side
Materials: Steel
Available Sizes: 3/16”, 1/4”
Headstyles: Protruding, Truss, 100° Oval Flush
Benefits
-
Unique bulbing system for superior blind side strength
-
Wide grip-range and unique double-locking action
-
Positive mechanical bolt retention ensures structural integrity
-
Large, blind-side footprint prevents pull-through
-
Annular grooves keep pressure on the back side
-

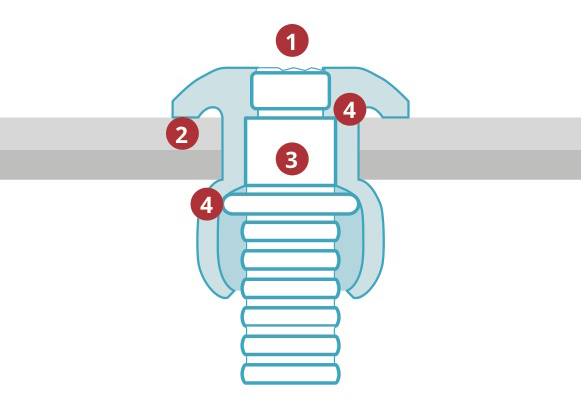

Breaking flush throughout its grip range, HuckLok allows at-a-glance verification of installation accuracy.
-
Undercut fillet allows seating in burred holes.
-
Solid pin provides exceptionally high strength in the shear plane.
-
Lock groove on pin engages shoulder on rivet head, while the extruded support ring double locks the pin within the bulb.
Dimensions
